200W Linkable Single Channel Zone Amplifier

LMA201

Availability: Call for Availability

Your Price:

$825.99

Looking for more product-specific information? Check out our knowledge-base videos!

DESCRIPTION

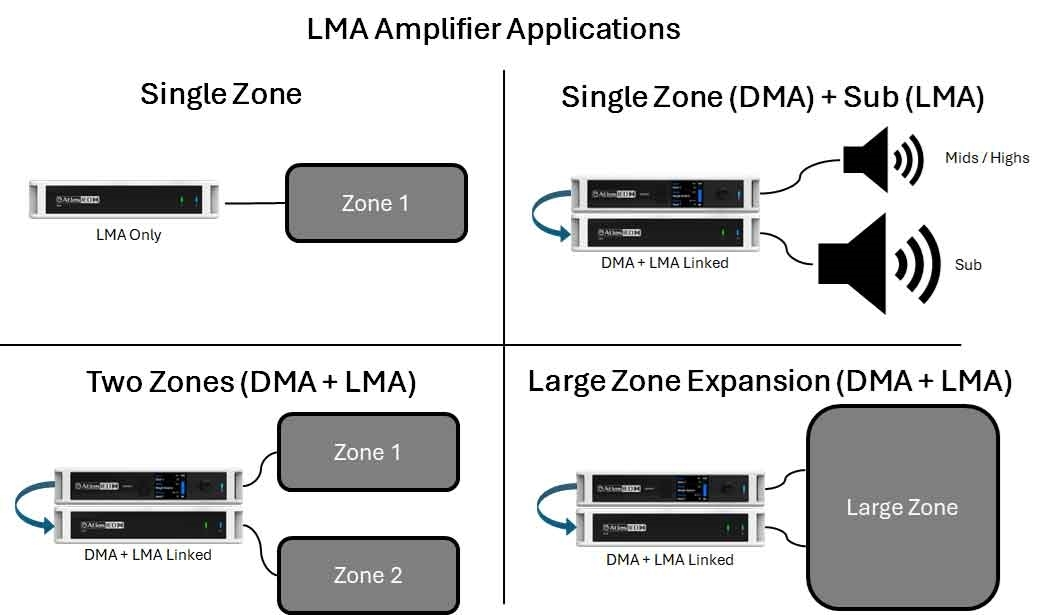

The AtlasIED LMA201 provides 200 watts of single-channel amplification for integrators who need additional output power with flexible deployment options. Designed to operate as a standalone amplifier or as a second zone or system expansion when linked with a DMA Series mixer amplifier, the LMA201 offers predictable performance and easy system integration.

The amplifier supports both low-impedance and constant-voltage speaker loads, making it suitable for distributed audio systems, sound reinforcement applications, or dedicated subwoofer amplification. Its advanced switch-mode, global auto-sensing power supply delivers consistent output under varying line conditions while maintaining high efficiency and thermal stability.

Integrator-focused features include balanced line inputs, electronically summed RCA jacks, rear-panel detented gain control, and remote level control support. When linked to a DMA amplifier via standard Ethernet, the LMA201 becomes a gain-matched Zone 2 or expansion channel with centralized control. Push Here Diagnostic (PHD) simplifies commissioning by verifying speaker wiring, impedance, and tap settings automatically.

Features

LMA Series amplifiers are available in 100 W, 200 W, and 400 W models
Load Configurations - 2Ω, 4Ω, 8Ω, 25V, 70.7V and 100V
Energy Efficient, 1W Standby GPI
Convection cooled
Priority Mute GPI
Rear Attenuators

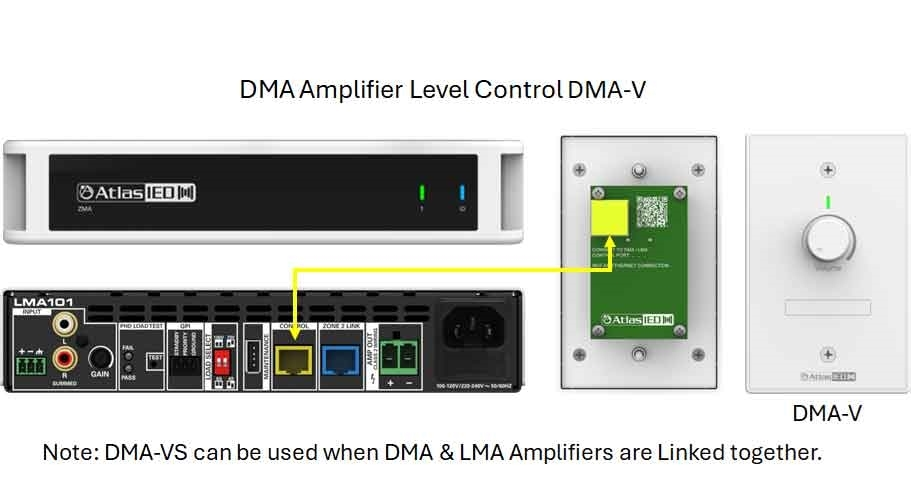

Compatible with remote level controllers (DMA-V, DMA-VS)
PHD Speaker Diagnostic System
Zone 2 Link to DMA series mixer-amplifiers
Compact 1RU, half rack
Rack kit included

Applications

Restaurants, Cafes
Small retail background and foreground music
Presentation Rooms
Higher & Lower Educational Facilities

SPECIFICATIONS

Output Power	200 W @ 4 Ω, 8 Ω, 70.7 V, 100 V, 150 w @ 25 V, 100 W @ 2 Ω
Frequency Response	20 Hz-20 kHz (+0/-1.5dB) in 2-, 4-, 8-Ohm, 25 V Modes; 50 Hz-20 KHz (+0/-1.5 dB) in 70.7 V, 100 V Modes
Power Consumption	0.4 W Standby Mode, 11.7 W Active Idle Mode, 220.4 W Full Load - 70.7 V
Height	1.75 " (44.5 mm)
Width	8.5 " (215.9 mm)
Depth	11.23 " (285 mm)
Weight	4.85 lbs (2.2 kg)
Optional Rack Mount Kit	Rack Mount Hardware Included
Voltage Compatibility	Universal
Type	Power Amplifier, 1 Channel
Amplifier Topology	Class D
Power @ 4Ω, 8Ω, 70.7V, 100V	200 W
Power @ 25V	150 W
Power @ 2 Ω	100 W
Input Type	1 Balanced Line, 1 RCA (L & R are summed); Connectors are in parallel
Input Connector Type	3.5 mm Euroblock, 3-Position RCA (summed to mono)
Input impedance	20 k Ω (Balanced), 10 k Ω (unbalanced)
Input Sensitivity	775 mV Balanced, 316 mV RCA Adjustable
